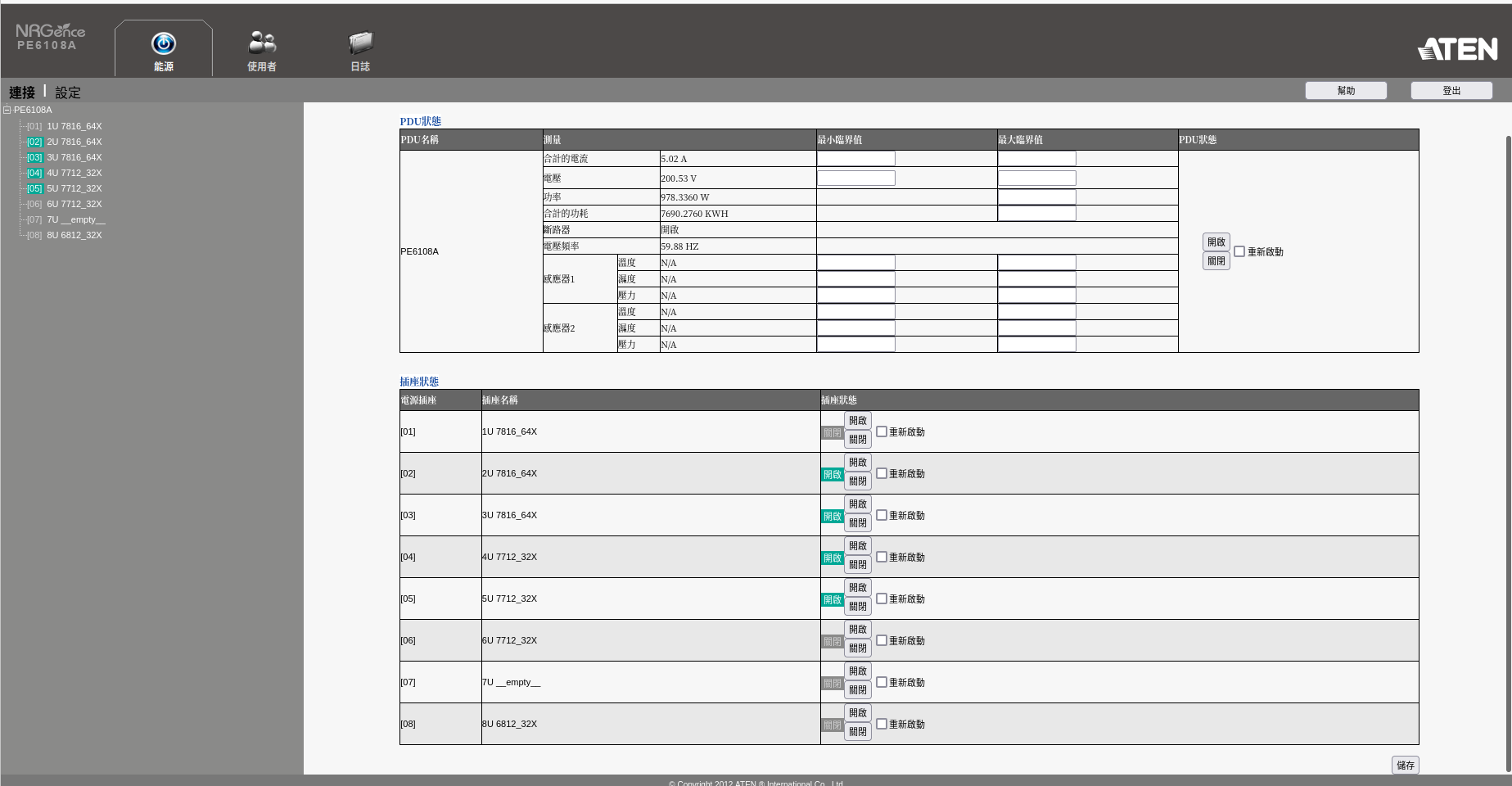

ATEN Power Controller
用瀏覽器登入 192.168.40.61 開啟指定機器
ATEN Power Controller
用瀏覽器登入 192.168.40.60 開啟指定機器
ATEN Console Server

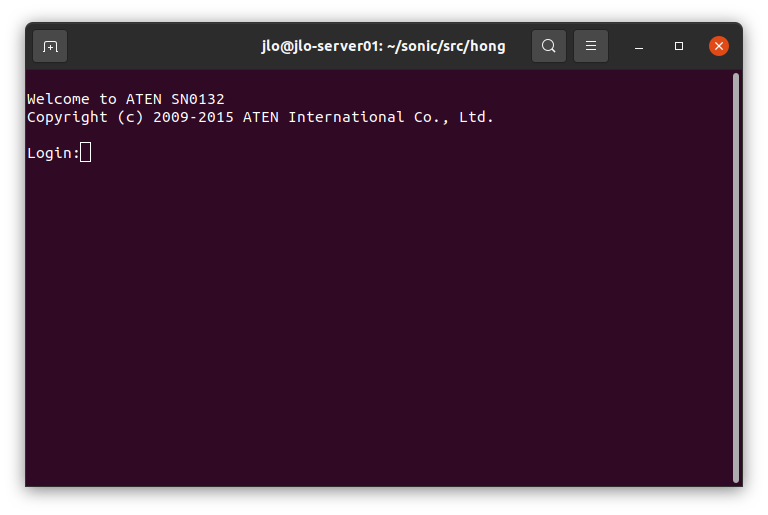

//連到機器輸入帳密
$ telnet 192.168.40.50

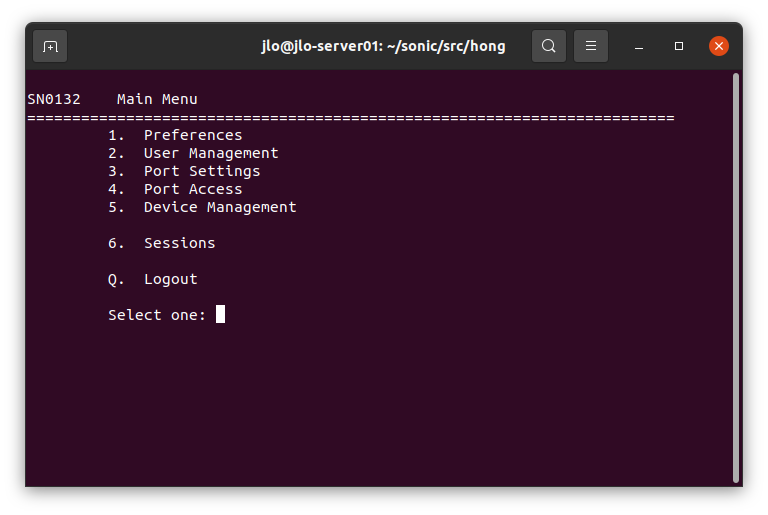

選擇 4. Port Access

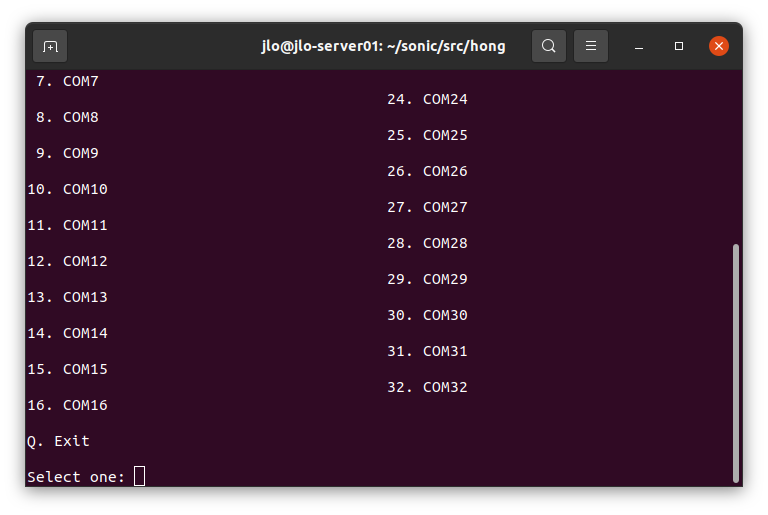

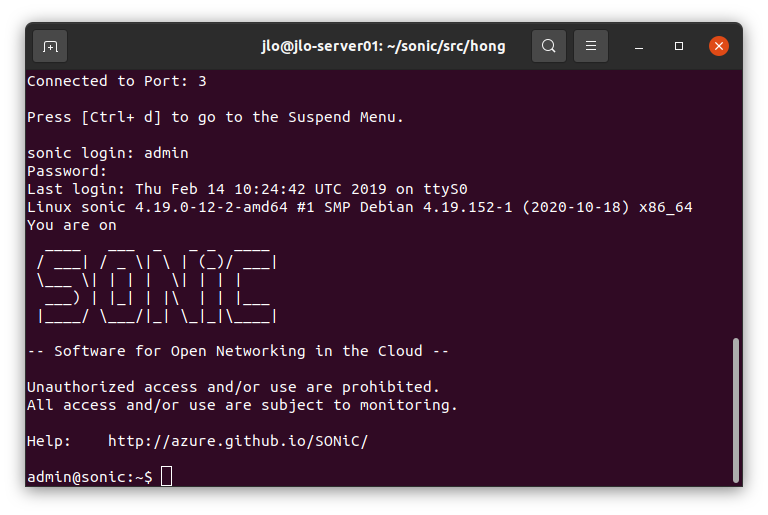

選擇指定機器並登入

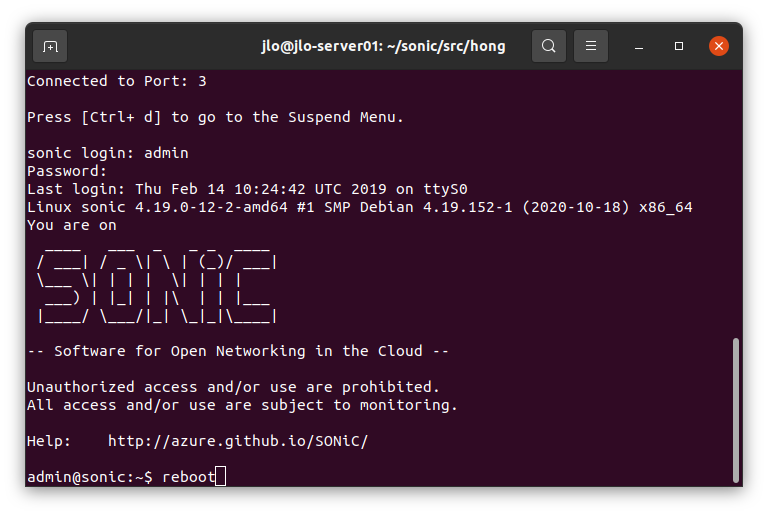

//重新啟動 $ reboot

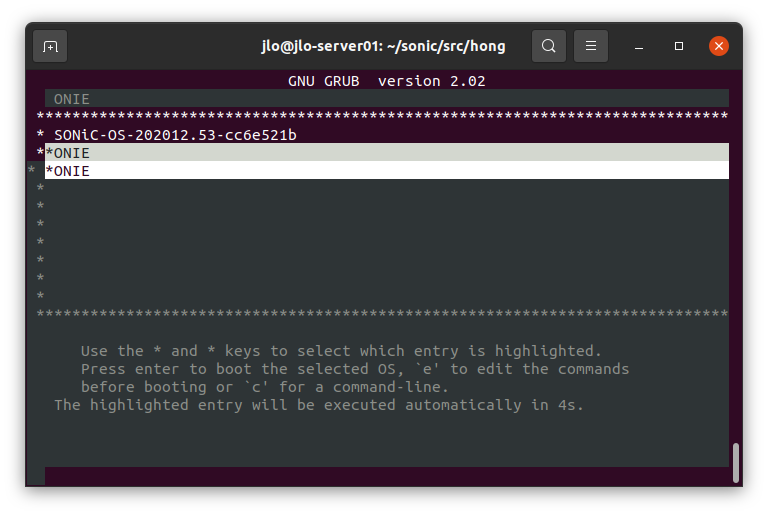

選擇 ONIE

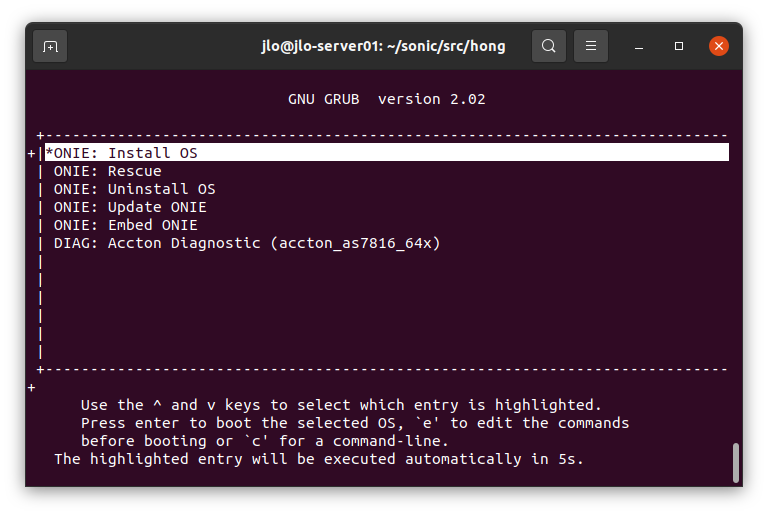

ONIE: Install OS
4..3..2..1..Info: eth0: Checking link... down. ONIE: eth0: link down. Skipping configuration. ONIE: Failed to configure eth0 interface ONIE: Starting ONIE Service Discovery Info: Attempting tftp://onie-server/1c-ea-0b-84-78-00/onie-installer-x86_64-accton_as7816_64x-r0 ... Info: Attempting tftp://onie-server/onie-installer-x86_64-accton_as7816_64x-r0 ... Info: Attempting tftp://onie-server/onie-installer-x86_64-accton_as7816_64x-r0.bin ... Info: Attempting tftp://onie-server/onie-installer-x86_64-accton_as7816_64x ... Info: Attempting tftp://onie-server/onie-installer-x86_64-accton_as7816_64x.bin ... Info: Attempting tftp://onie-server/onie-installer-accton_as7816_64x ... Info: Attempting tftp://onie-server/onie-installer-accton_as7816_64x.bin ... Info: Attempting tftp://onie-server/onie-installer-x86_64-bcm ... Info: Attempting tftp://onie-server/onie-installer-x86_64-bcm.bin ... Info: Attempting tftp://onie-server/onie-installer-x86_64 ... Info: Attempting tftp://onie-server/onie-installer-x86_64.bin ... Info: Attempting tftp://onie-server/onie-installer ... Info: Attempting tftp://onie-server/onie-installer.bin ... Info: Sleeping for 20 seconds 4..3..2..1..Info: eth0: Checking link... down.
